Isometric Graph Paper: uses, sizes and printing tips

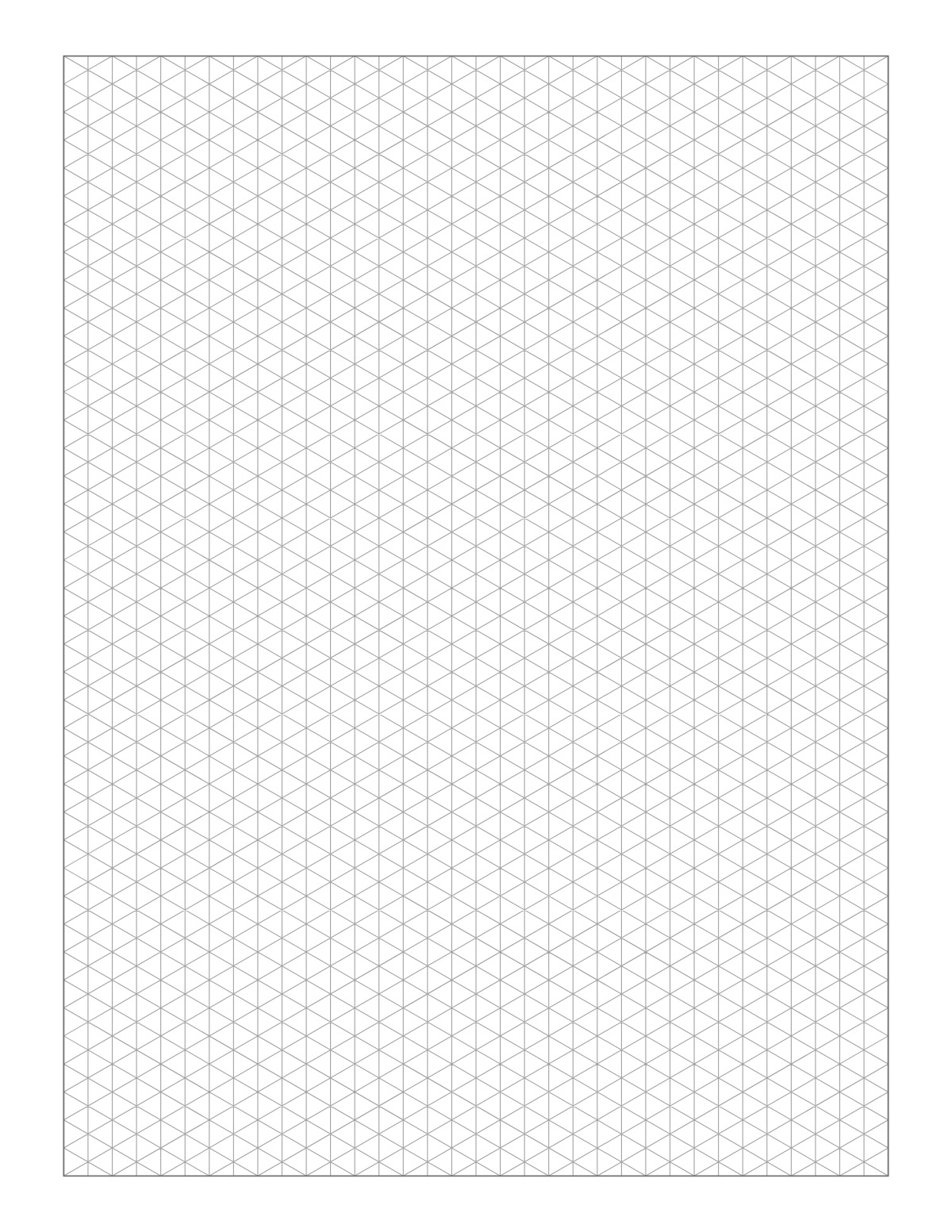

Isometric paper is ruled with vertical lines and lines at 30° in both directions, forming equilateral triangles. Drawing along those three directions produces 3D views of boxes, buildings and machine parts with true-length edges.
How to print it
- Choose the paper size (US Letter, A4, Legal, A5 or Half Letter) and portrait or landscape — the page updates as you change settings.
- Choose the triangle size and whether you want full triangle lines or dots only.
- Add a title or a name/date header if you want, or keep the page plain.
- Click Print / Save as PDF. In the print dialog choose “Actual size” (100%) and turn off “Headers and footers”.
Tips
- For clean finished art, sketch on the lines and trace onto plain paper, or use isometric dot paper.
- Draw the three visible faces of a box along the three line directions — vertical edges stay vertical.
- Dots-only isometric paper gives cleaner finished drawings, because no grid lines show between your strokes.
FAQ
How do I draw a cube on isometric paper?
Draw a vertical edge, then two edges going up at 30° to the left and right from its bottom; copy them from the top and close the faces. Every edge follows a printed line.
What size triangles should I choose?
Start with 1/4″ or 1 cm; use 1/2″ or larger for young students.
What is isometric paper?
A grid of equilateral triangles: lines run vertically and at 30° to the horizontal. It lets you draw 3D objects with true-length edges, which is why it is used for technical sketches, game maps and math class.
Is it free, and do I need an account?
It is completely free with no sign-up and no download. Change the settings, print it or save it as a PDF, and bookmark the address — your settings are stored in the link.
